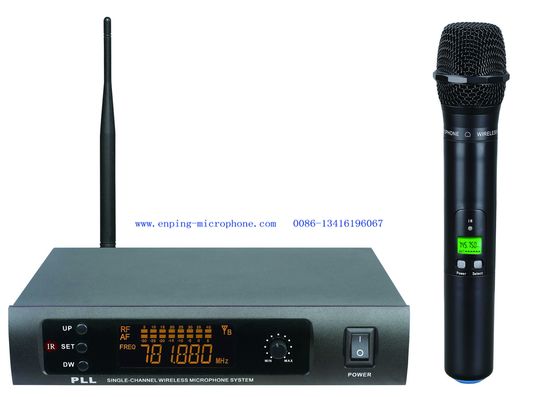

LS-980 one handheld wireless microphone system UHF Infrared PLL single channel LCD Flexible half rack size



LS-980 infrared wireless microphone system

UHF band /  one channel singel channel one handheld  /   wireless microphone  /   Infrared synchronization  /  Infra-Red  /    80 channels selectable  /   LCD display  /  color screen  /   Rechargeable Batteries

micrófono  mikrofon  microfono mikropon microfoon



LS-980 infrared  wireless microphone system Brief  Description:

LS-980 wireless microphone system is a professional single  channel wireless microphone design for users who require professional performance and lower price. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.



LS-980 infrared wireless microphone system  Feature:

single  channel muti-frequency wireless microphone

Working at low interference UHF band (500-900MHz)

Pre-set 80 channels each channel

LCD display working statue

Infrared synchronization between receiver and transmitter



RECEIVER

• Carrier Frequency Range: UHF 500~900MHz
• Oscillation Mode: Phase-locked Loop controlled
• Stability: 10PPM
• Switching bandwidth: 40MHz
• Channel spacing: >250kHz
• Sensitivity: 1.5uV @ sinad=12 dB
• Max. Deviation Range: 48KHz
• S/N Ratio: >105dB
• T.H.D.: <0.5% @ 1KHz
• Image rejection: 85 dB  typical
• Spurious rejection: 75 dB  typical
• Frequency Response: 80Hz~15KHz
• Squelch Control:dual-squelch circuit
• Max. Output Level: Balance : 0—300mv, Unbalance : 0—600mv.
• Power Supply: External DC Power Supply, 0.64, 12~15V DC
• Dimensions (m/m): 210(L)*45(H)*185(D)
• Weights (Kg): 3

TRANSMITTER(HANDHELD)

• Transmitter power: 10mW
• Spurious emission: <60dB(with carrier)
• Battery voltage: 1.5v*2
• Battery life: 8 hours





PLL UHF infrared handheld choosing:



rechargable handheld for fixed or infrared :

If  charged handheld ,you can choose:



  body pack with handheld charger





boady pack charger



one handheld charger

                                                                                                  two handheld charger
