LS-7600 PRO UHF wireless microphone system with 2 MICS / rack mountable / low price



LS-7600  wireless microphone system

UHF band     /    top quality good price   /    Pro dual wireless microphone  /   fixed frequency /   2 channel  2 handheld or  headset MIC  Lavalier Mic  Clip Mic  with body pack /     battery charge      rechargeable battery  /   rack mountable

micrófono  mikrofon  microfono mikropon microfoon



LS-7600  wireless microphone system Brief  Description:

LS-7600 wireless microphone system is a super quality wireless microphone design for users who require professional performance and budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.



LS-7600  wireless microphone system  Feature:

Dual channel fixed frequency wireless microphone

Working at low interference UHF band (600-865MHz)

14 frequencies available

Smart handheld microphone and rugged rack size receiver.

Reliable SMT technology

Dual filter design makes better anti-interference ability

External TNC rubber antenna

High performance capsule

Each channel has individual volume control.

Balanced and line output available.



LS-7600 wireless microphone system Specification:

	Description	Receiver	Transmitter
General physical specification	Housing	Aluminum / steel	Molded ABS
	Output	Line out / Balanced out
	Operation temperature	Storage:-10-60 degree Working:0-50 degree	Storage:-10-60 degree Working:0-50 degree
General electric specification	Control	Volume control	No
	Working distance		>150 feet ideal
	Supply voltage	12V – 350mA	1.5v AA battery * 2 or 9v battery * 1
	Battery life		Typical: > 8hours
Audio	Frequency response	80-14kHz
	T.H.D.	<0.8% at +/- 38kHz deviation with 1kHz tone
	S/N Ratio	>85dB
	Dynamic range	>80dB
	Line out level	+/- 38kHz deviation with 1kHz tone, -2dBv
	Balanced out level	+/- 38kHz deviation with 1kHz tone, -7dBv
	Capsule style	Dynamic (Handheld) / Condenser (Belt-pack)
	Direction	Cardioid (Handheld)  / Condenser (Omni-direction)
	Capsule frequency response	80Hz-14kHz
RF	Carrier frequency (available)	620.00-865.00MHz	620.00-865.00MHz
	Oscillation	Crystal	Crystal
	Frequency stability	10ppm	10ppm
	Modulation	Maxim 45kHz
	Sensitivity	-105dB(sinad=12dB)
	Spurious rejection	>90dB
	Image rejection	>100dB
	RF power		10mW-30mW

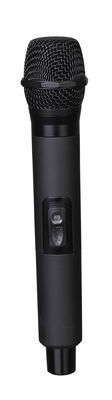

UHF fixed frequency handheld choosing:



rechargable handheld for fixed or infrared :

If  charged handheld ,you can choose:



body pack with handheld charger



 body pack charger



one handheld charger

                                                                                                            two handheld charger







Any color as you like, black as example below:

1)

PS: handheld do not produce now

2)











And we have silimar models, maybe you are also  interested in :



7400 UHF wireless microphone system:



5000 UHF wireless microphone system:



8600 infrared wireless microphone system:









---
