LS-7320 single channel UHF wireless microphone / micrófon competitive cheap price / shure style

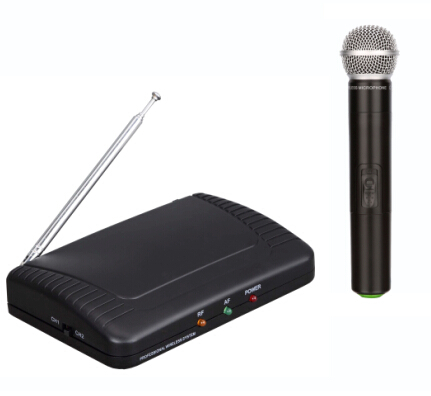

LS-7320 wireless microphone system

shure style PG88   /  one channel singel handheld   or  headset MIC  Lavalier Mic  Clip Mic   with body pack     /     wireless  microphone   /    UHF band    cheap  low price     /     10  fixed frequencies    /  rechargeable battery /

micrófono  mikrofon  microfono mikropon microfoon



LS-7320 wireless microphone system Brief  Description:

LS-7320 wireless microphone system is a simple singel channel wireless microphone design for users who require professional performance and budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.

.

LS-7320 wireless microphone system  Feature:

Working at low interference UHF band (600-865MHz)

Smart handheld microphone and big size receiver alike SHURE latest type PG88

Reliable SMT design circuit

10 frequencies

With external BNC antenna

High performance capsule

Individual balanced output



LS-7320 wireless microphone system Specification:



	Description	Receiver	Transmitter
General physical specification	Housing	Molded ABS	Molded ABS
	Output	Line out / Balanced out
	Operation temperature	Storage:-10-60 degree Working:0-50 degree	Storage:-10-60 degree Working:0-50 degree
General electric specification	Control	Volume control	No
	Working distance		>150 feet ideal
	Supply voltage	12V – 350mA	1.5v AA battery * 2 or 9v battery * 1
	Battery life		Typical: > 8hours
Audio	Frequency response	80-14kHz
	T.H.D.	<0.8% at +/- 38kHz deviation with 1kHz tone
	S/N Ratio	>85dB
	Dynamic range	>80dB
	Line out level	+/- 38kHz deviation with 1kHz tone, -2dBv
	Balanced out level	+/- 38kHz deviation with 1kHz tone, -7dBv
	Capsule style	Dynamic (Handheld) / Condenser (Belt-pack)
	Direction	Cardioid (Handheld)  / Condenser (Omni-direction)
	Capsule frequency response	80Hz-14kHz
RF	Carrier frequency (available)	620.00-865.00MHz	620.00-865.00MHz
	Oscillation	Crystal	Crystal
	Frequency stability	10ppm	10ppm
	Modulation	Maxim 45kHz
	Sensitivity	-105dB(sinad=12dB)
	Spurious rejection	>90dB
	Image rejection	>100dB
	RF power		10mW-30mW





UHF fixed frequency handheld choosing:



rechargable handheld for fixed or infrared :

If  charged handheld ,you can choose:



body pack with handheld charger





 body pack charger





one handheld charger

                                                                                                          two handheld charger













IF you like this model with same appearance but smaller size , please take a look at



7310 singel channel wireless microphone system:

If you like this model with two handheld microphone, pls take a look at:

7220 dual channel wireless microphone system:









And we have silimar models, maybe you are also  interested in :



7110 singal channel wireless microphone





7100 singal channel wireless microphone:



7300 one hanheld wireless microphone:



18 singel channel wireless microphone system:









---
