LS-7300 one channel UHF wireless microphone with single handheld / SHURE UT-4 style /micrófono mikrofon



LS-7300  wireless microphone system

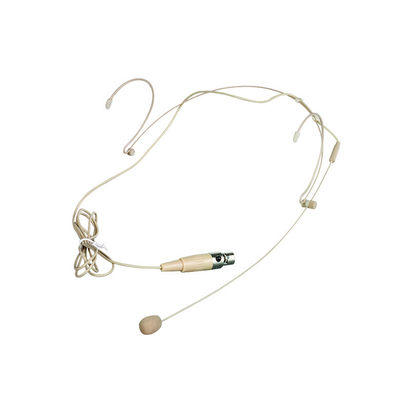

SHURE UT-4  style /   UHF band   /  one channel microphone   singel channel  one-handheld  or headset MIC  Lavalier Mic  Clip Mic   /  low price     super quality   /   wireless microphone    /  10  fixed frequencies  /   rechargeable battery a

micrófono  mikrofon  microfono mikropon microfoon



LS-7300 wireless microphone system Brief  Description:

LS-7300 wireless microphone system is a super quality wireless microphone design for users who require budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.

.

LS-7300  wireless microphone system  Feature:

Working at low interference UHF band (600-865MHz)

Smart handheld microphone and receiver alike SHURE UT-4

Reliable SMT design circuit

Dual filter design makes better anti-interference ability

10 frequencies

High performance capsule

Line out and balanced out

Constant quality



LS-7300 wireless microphone system Specification:



	Description	Receiver	Transmitter
General physical specification	Housing	Molded ABS	Molded ABS
	Output	Line out / Balanced out
	Operation temperature	Storage:-10-60 degree Working:0-50 degree	Storage:-10-60 degree Working:0-50 degree
General electric specification	Control	Volume control	No
	Working distance		>150 feet ideal
	Supply voltage	12V – 150mA	1.5v AA battery * 2 or 9v battery * 1
	Battery life		Typical: > 8hours
Audio	Frequency response	80-14kHz
	T.H.D.	<0.8% at +/- 38kHz deviation with 1kHz tone
	S/N Ratio	>85dB
	Dynamic range	>80dB
	Line out level	+/- 38kHz deviation with 1kHz tone, -2dBv
	Balanced out level	+/- 38kHz deviation with 1kHz tone, -7dBv
	Capsule style	Dynamic (Handheld) / Condenser (Belt-pack)
	Direction	Cardioid (Handheld)  / Condenser (Omni-direction)
	Capsule frequency response	80Hz-14kHz
RF	Carrier frequency (available)	620.00-865.00MHz	620.00-865.00MHz
	Oscillation	Crystal	Crystal
	Frequency stability	10ppm	10ppm
	Modulation	Maxim 45kHz
	Sensitivity	-105dB(sinad=12dB)
	Spurious rejection	>90dB
	Image rejection	>100dB
	RF power		10mW-30mW





UHF fixed frequency handheld choosing:



rechargable handheld for fixed or infrared :

If  charged handheld ,you can choose:



body pack with handheld chargedr





  boady pack charger



one handheld charger

                                                                                           two handheld charger
